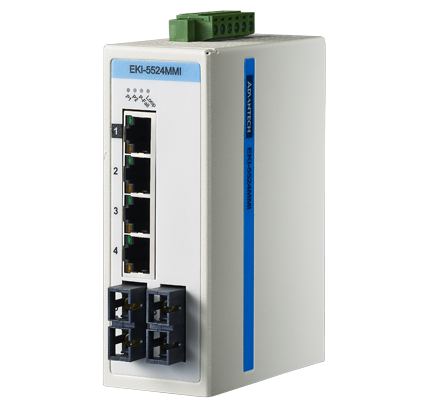

EKI-5524MM
4-port + 2x100FX port (Single/Multimode, SC/ST type), Fast Ethernet ProView Switch
Product Availability : Against PO
Country Of Origin: Taiwan
FEATURES
- Communicates with SCADA software via Modbus/TCP
- Communicates with NMS (Networking management system) via SNMP
- Port-based QoS for deterministic data transmission
- -40~75°C operating temperature range (EKI-5524SSI/SSI-ST,EKI-5524MMI/MMI-ST only)
- 12 ~48 VDC (8.4 ~52.8 VDC) wide-range power input
- EMS level 3 protection for extreme outdoor environments
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Jumbo Frame Support (Up to 9,216 Bytes)
- Supports redundant 12~48VDC power input and P-Fail relay
- Loop detection
DOWNLOAD
Specifications
| Communications | |||
| Standard | IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab | ||
| LAN | 10/100Base-T(X), 100Base-FX | ||
| Transmission Distance | Ethernet: Up to 100 m Multi-mode Fiber: Up to 2 km (EKI-5524MM Series) Single-mode Fiber: Up to 30 km (EKI-5524SS Series) |
||
| Optical Fiber Multi-Mode (EKI-5524MM/MMI/MM-ST/MMI-ST) |
Wavelength:1310nm Tx Power: -14/-20 dBm Rx Sensitivity: -32 dBm Parameters: 50/125 um, 62.5/125 um |
||
| Optical Fiber Single-Mode (EKI-5524SS/SSI/SS-ST/SSI-ST) |
Wavelength: 1310 nm Tx Power: -8/-15 dBm Rx Sensitivity: -34 dBm Parameters: 9/125 um |
||
| Transmission Speed | Up to 100 Mbps | ||
| Interface | |||
| Connectors | 4 x RJ45 ports 2 x SC/ST type fiber optic connectors 6-pin screw Terminal Block (including relay) |
||
| LED Indicators | P1,P2, P-Fail, Loop detection 10/100T(X): Link/Activity, Speed |
||
| Switch Properties | |||
| MAC Table Size | 2K | ||
| Packet Buffer Size | 1M bit | ||
| Switching Capacity | 1.2 Gbps | ||
| Jumbo Frame | 9216 bytes | ||
| Power | |||
| Power Consumption | Max. 4 W | ||
| Power Input | 12~48 VDC (8.4~52.8 VDC), redundant dual inputs | ||
| Fault Output | 1 Relay Output | ||
| Mechanism | |||
| Dimensions (W x H x D) | 43 x 120 x 84 mm | ||
| Enclosure | IP30, metal shell with solid mounting kits | ||
| Mounting | DIN-Rail, Wall | ||
| Protection | |||
| Reverse Polarity | Present | ||
| Overload Current | Present | ||
| Environment | |||
| Operating Temperature | EKI-5524SS/SS-ST/MM/MM-ST: -10~60°C (14~140°F) EKI-5524SSI/SSI-ST/MMI/MMI-ST: -40~75°C (-40~167°F) |
||
| Storage Temperature | -40 ~ 75°C (-40 ~ 167°F) | ||
| Operating Humidity | 10 ~ 95% (non-condensing) | ||
| Storage Humidity | 10 ~ 95% (non-condensing) | ||
| MTBF | 144,890 hours | ||
| Certification | |||
| Safety | IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX | ||
| EMI | FCC Part 15 Subpart B Class A, EN 55011/55022 Class A | ||
| EMS | EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 |
||
| Shock | IEC 60068-2-27 | ||
| Freefall | IEC 60068-2-32 | ||
| Vibration | IEC 60068-2-6 | ||
