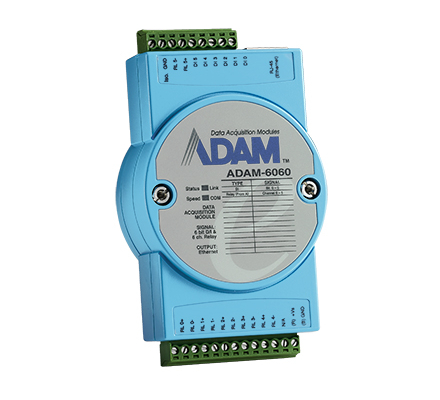

ADAM-6060
Relay/6DI IoT Modbus/SNMP/MQTT Ethernet Remote I/O
Product Availability: Against PO
Country Of Origin: Taiwan
FEATURES
- I/O:6ch relay/6ch digital input(counter)
- Protocols:MQTT(TLS),SNMP,Modbus TCP,RESTful API,ASCII
- GCL to perform basic logic control rules
- Peer-to-Peer function to map I/O status
- Cloud access: Data update to Azure
- Built-in web server
- Watchdog timer to recover the syste
DOWNLOAD
Specifications
| General | |||
| LAN | 1-port 10/100Base-T(X) | ||
| Power Consumption | 2 W @ 24 VDC (ADAM-6060) | ||
| Connectors | 1 x RJ-45 (LAN), Plug-in screw terminal block (I/O and power) | ||
| Watchdog Timer | System (1.6 second) and Communication (programmable) | ||
| Power Input | 10 ~ 30 VDC | ||
| Supports Peer-to-Peer | |||
| Supports GCL | |||
| Supports Modbus/TCP, TCP/IP, UDP, DHCP, SNMP, RESTful and MQTT Protocol | |||
| Digital Input | |||
| Channels | 6 | ||
| Dry Contact | Logic level 0: Closed to GND Logic level 1: Open |
||
| Wet Contact | Logic level 0: 3 VDC Logic level 1: 10 ~ 30 VDC or floating Support DO type: Sink (NPN) only |
||
| Supports 3 kHz Counter Input (32-bit + 1-bit overflow) | |||
| Keep/Discard Counter Value when Power-off | |||
| Supports 3 kHz Frequency Input | |||
| Supports Inverted DI Status | |||
| Relay Output (Form A) | |||
| Channels | 6 | ||
| Contact Rating (Resistive) | ADAM-6060: 120 VAC @ 0.5 A 30 VDC @ 1 A |
||
| Breakdown Voltage | 500 VAC (50/60 Hz) | ||
| Relay On Time | 7 ms | ||
| Relay Off Time | 3 ms | ||
| Total Switching Time | 10 ms | ||
| Insulation Resistance | 1 GΩ min. at 500 VDC | ||
| Maximum Switching | 20 operations/minute | ||
| Protection | |||
| Isolation Voltage | 2,000 VDC | ||
| Environment | |||
| Operating Temperature | -40 ~ 70°C ( -40~158°F) | ||
| Storage Temperature | -40 ~ 80°C (-40~176°F) | ||
| Operating Humidity | 20 ~ 95% RH (non-condensing) | ||
| Storage Humidity | 0 ~ 95% RH (non-condensing) | ||
