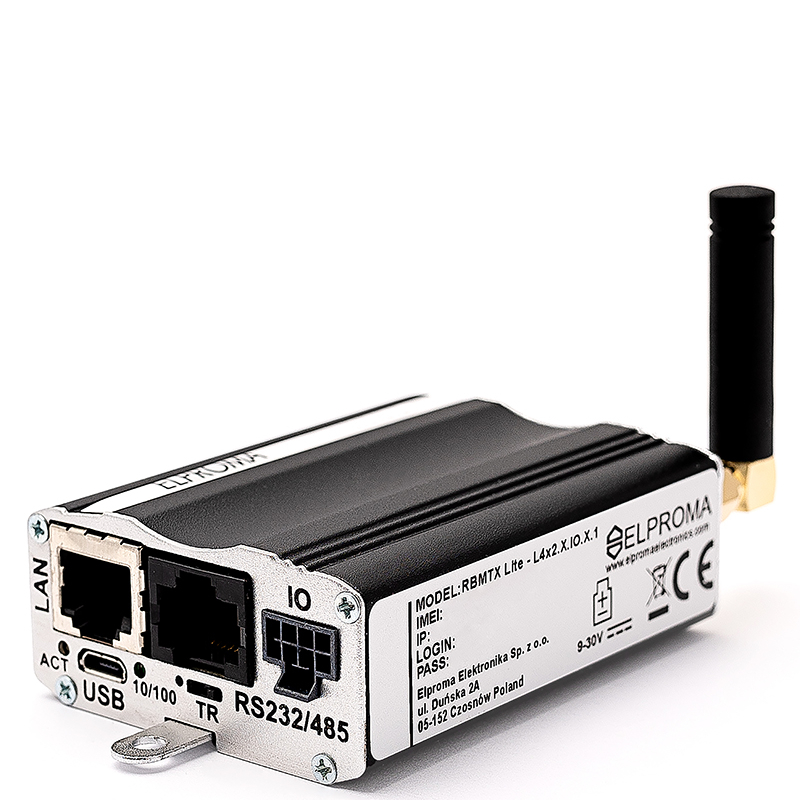

RBMTX-LITE 4G
THE SMALLEST, LOW COST 2G/3G/4G ROUTER
Product Availability: Against PO
Country Of Origin: Poland
Description
- The RBMTX-LITE 4G is a low-cost, very small router made for wireless m2m applications. It is a compact device which supports 4G modem B1/B3/B7/B8/B20@LTE, 900/2100MHz@UMTS and 900/1800@GSM, Dual SIM, MIMO*, Ethernet networks, RS232, RS485 and USB interfaces.The router serves users looking for easy and robust mobile Internet access. Internet connection is easily available and configurable via internet browser without any need of installing software or drivers for the device.
RBMTX-LITE 4G low-cost small router is a universal solution for all low-volume M2M/(I)IoT and mobile data applications including metering, traffic systems, transportation and logistics, security, vending machines and facility management.
Specifications
| Mobile | 4G Cat. 1/Cat. 4 modem • B1/B3/B7/B8/B20@LTE, 900/2100MHz@UMTS, 900/1800@GSM |
||
| Communication protocols | Ethernet 10/100 Mbit/s RS232 RS485 |
||
| Functions | OpenVPN, IPSec, TCP/IP, E-mail protocols, SMS Wi-Fi + Bluetooth or GNSS receiver (option) |
||
| System | System based on OpenWRT Python, “C” or Bash-script programmable Also available as a programmable Linux platform |
||
| Ambient temperature | -20 to 60 °C | ||
| Power Supply | 9 to 30V DC power supply | ||
| Dimensions | 83 x 60 x 34 mm with connectors | ||
| Weight | ≈ 90 g | ||
| Housing | Rugged metal | ||
| Warranty | 24-months |
