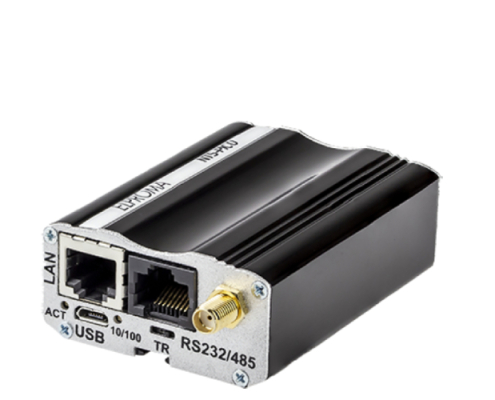

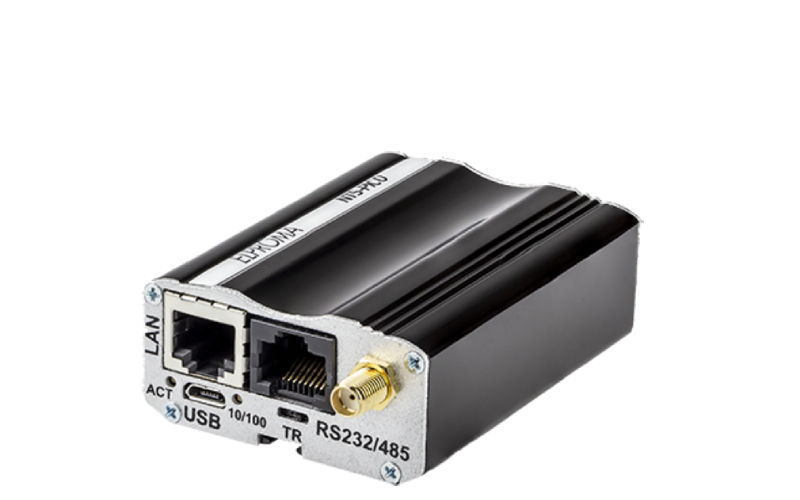

NTS-PICO3

Ultra-miniature NTP/PTP IEEE 1588 time server
Product Availability : Against PO
Country Of Origin: Poland

Category:

FEATURES

  • NTP/IEE 1588 Miniature Time Server
  • Interfaces:
    – LAN1 – 100/10 Mbps
    – RS232/485/USB
  • TCXO holdover
  • GNSS anti-jamming/spoofing
  • 30 m (38dB) antenna included

 DOWNLOAD

TimeSystems_NTS-pico3_datasheet

model NTS-PICO3 Miniature Time Server
holdover OSC TCXO
sync PROTOCOL NTP, PTP IEEE 802.1AS, PTP IEEE1588
NTP NTP v2, v3, v4, RFC1119, RFC1305, RFC1769, RFC5905, RFC5906, RFC5907
SNTP RFC1769, RFC2030, RFC4330
PTP IEEE1588: 2008
1pps OUTPUT 1x SMA*
Time/DAYTIME RFC(867-8)*
#LAN 1
LAN speed 100/10Mbps (RJ45)
TCP/IP IPv4, IPv6*, TCP, UDP
MANAGEMENT HTTP, HTTPS, NTPQ/NTPDC, SNMP*, SSH, TELNET*
SECURITY Autokey*, DSA, MD5*, RSA, SSL
SYSLOG yes
hardware STAMPING* accuracy < 200ns
NTP-PTP software* cross timestamping 1.5µs (typ. <1µs)
Antenna interface 1x SMA
std. GNSS BEIDOU*, GALILEO, GLONASS, GPS
Anti-jamming Anti-spoofing Multipath mitigation yes
#SBAS EGNOS, GAGAN, WAAS
FREQ #1 1575.42MHz (L1 GPS)
FREQ #2 1598.06-1605.38MHz GLONASS
#CHANNELS 32
antenna DISTANCE 30m coax H155
interface RS232 1x RJ45
interface USB 2.0 1 x Micro USB
weight NETTO 0.3kg (3kg BRUTTO)
operating TEMP. -20°C to +70°C
storage TEMP. -40°C to +85°C
%HUMIDITY conformal coating option*, up to 95% (non-condensing)
POWER 9-30 VDC
